Bixpy N-3 Outboard Motor & Battery Kit

DESCRIPTION

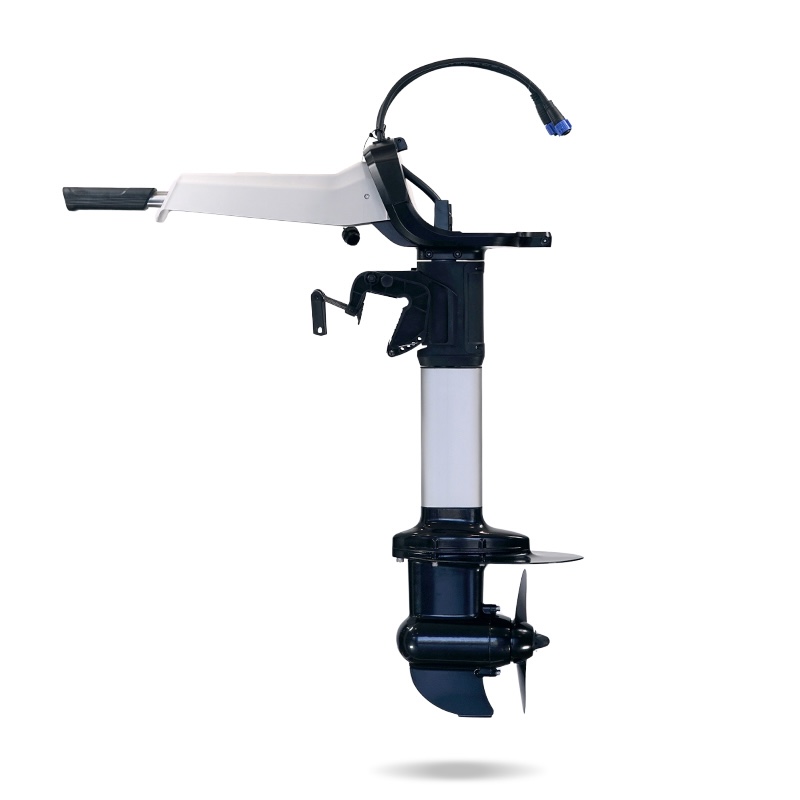

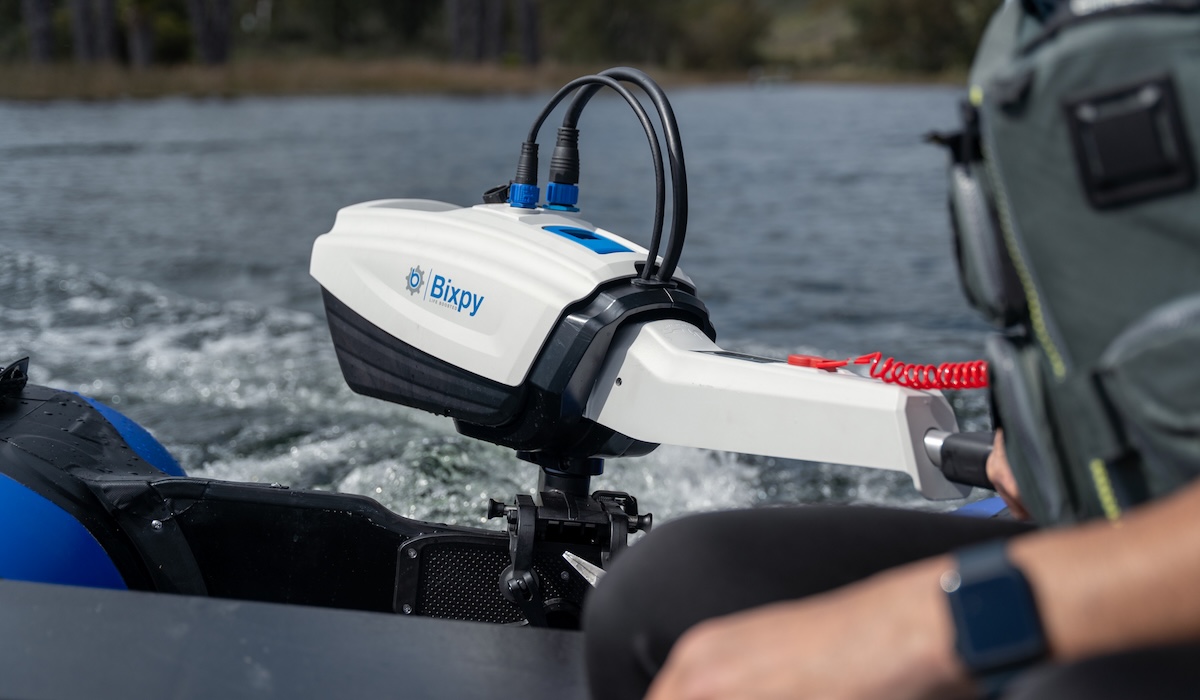

Meet the newest addition to the Bixpy lineup: the Bixpy N-3 Outboard Motor, a rugged, electric 3HP outboard built for serious adventure. Designed for boats between 8 and 14 feet, the N-3 is perfect for jon boats, dinghies, tenders, inflatables, and other small watercraft that demand more.

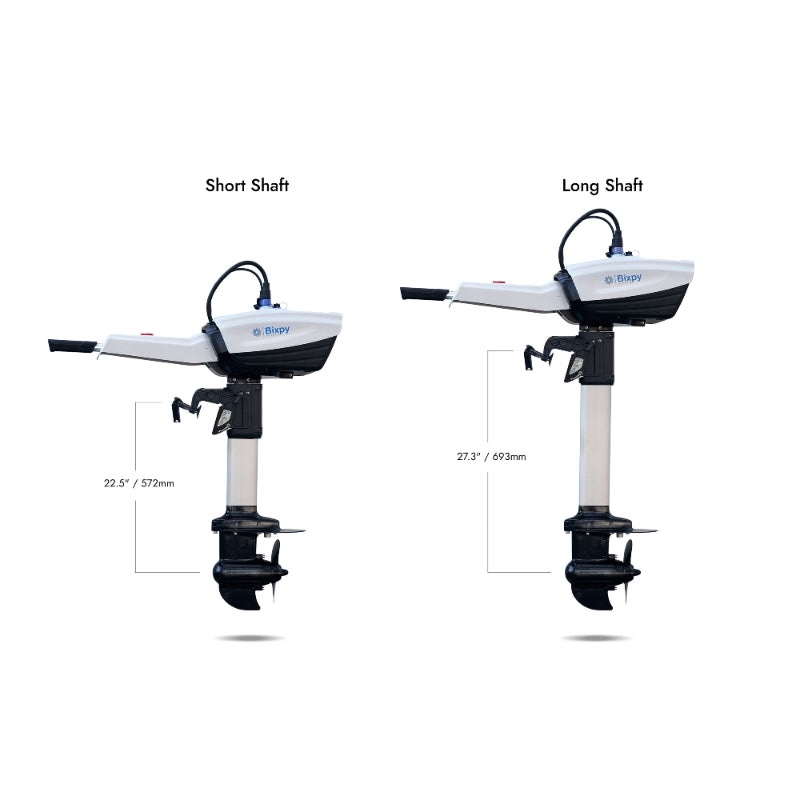

Available in two shaft lengths, the N-3 lets you choose the right fit for your vessel and setup:

• Short Shaft (22.5" / 572mm): Ideal for boats with shorter transoms

• Long Shaft (27.3" / 693mm): Perfect for boats with higher transom plate - like sailboats

With a high-efficiency brushless motor at its core, the N-3 delivers instant torque, whisper-quiet operation, and zero emissions. Whether you're navigating tight marinas or open bays, this motor gives you the freedom to go further, faster, and with more ease.

Because to us, it’s not just about moving your boat—it’s about moving your spirit.



VIDEO



FEATURES

• 3HP equivalent electric brushless motor with direct-drive propulsion
• Stepless throttle control for smooth, precise speed adjustment
• Maintenance-free and ultra-quiet performance
• IP67 waterproof rating for all-weather, all-water use
• Adjustable tilt and trim angles (0°, 5°, 10°, 15° / up to 75° tilt)
• Compatible with NB-1440 Battery (36V, 1440Wh lithium-ion)
• Ergonomic tiller handle with LCD display and magnetic kill switch
• Ideal for jon boats, dinghies, inflatables, tenders, and sailboats
• Durable marine-grade construction for saltwater and freshwater environments



INCLUDED

• Bixpy N-3 Motor

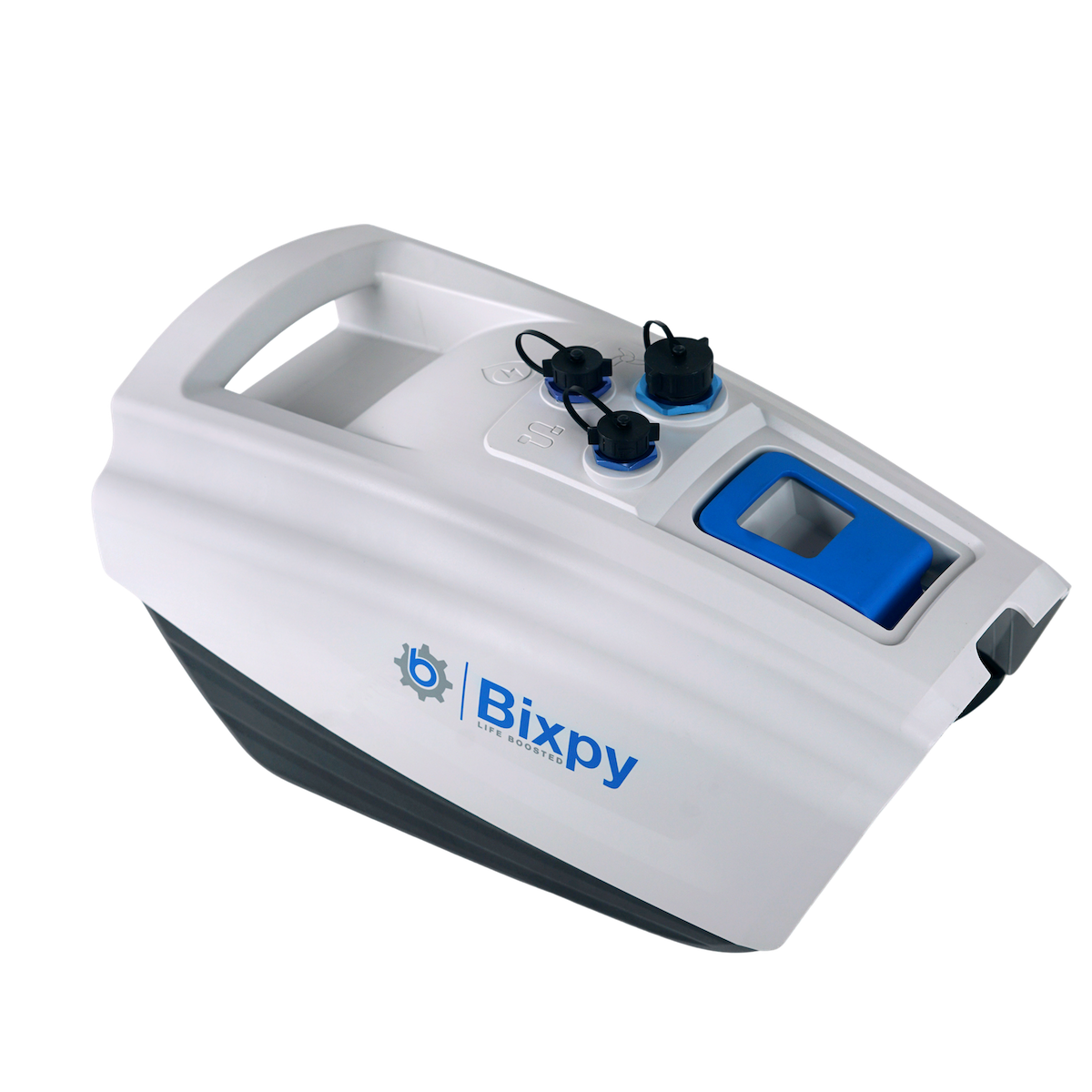

• Bixpy NB-1440 Power Pack
• Standard charger
• Magnetic Kill Switch



SPECIFICATIONS



• Motor Type: PMSM Brushless DC
• Power Output: 1.2 kW (3HP equivalent)
• Voltage: 36V
• Propeller: 2-blade aluminum, 9.25" diameter
• Shaft Length:
• Short: 22.5" (572 mm)
• Long: 27.3" (693 mm)
• Weight (short shaft system incl. bracket & battery): ~44 lbs (20 kg)
• Waterproof Rating: IP67
• Propeller Speed: 1750 RPM
• Trim/Tilt Angles: 0°, 5°, 10°, 15° / up to 75° tilt
• Display: LCD screen (battery %, speed, range, power draw, error codes)
• Kill Switch: Magnetic safety lanyard
• Compatible Battery: Bixpy NB-1440 Power Pack

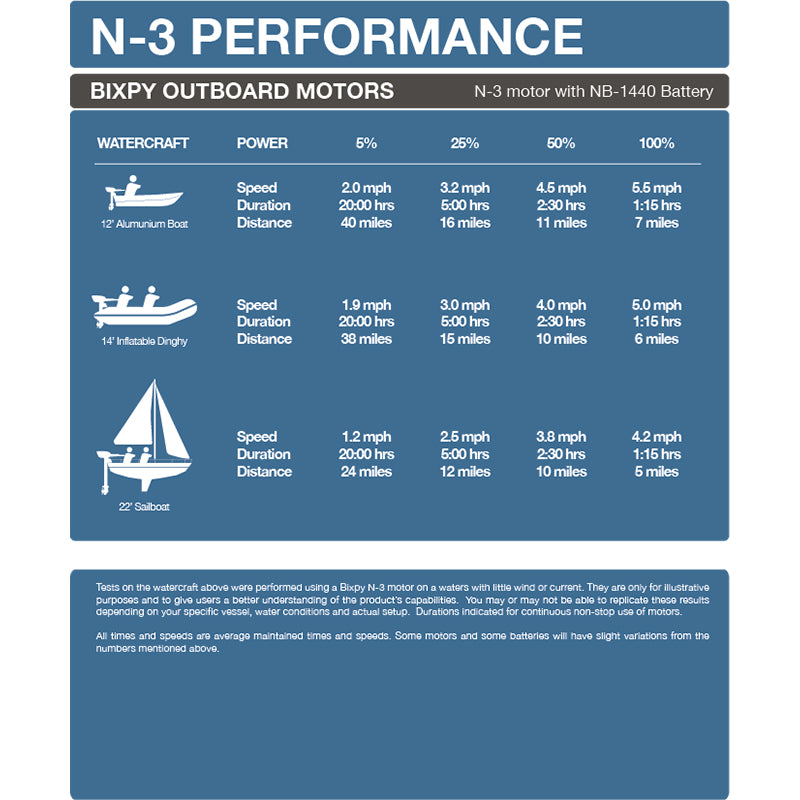

• Runtime: Up to 72 minutes at full speed (varies by usage and conditions)
• Warranty: One Year
